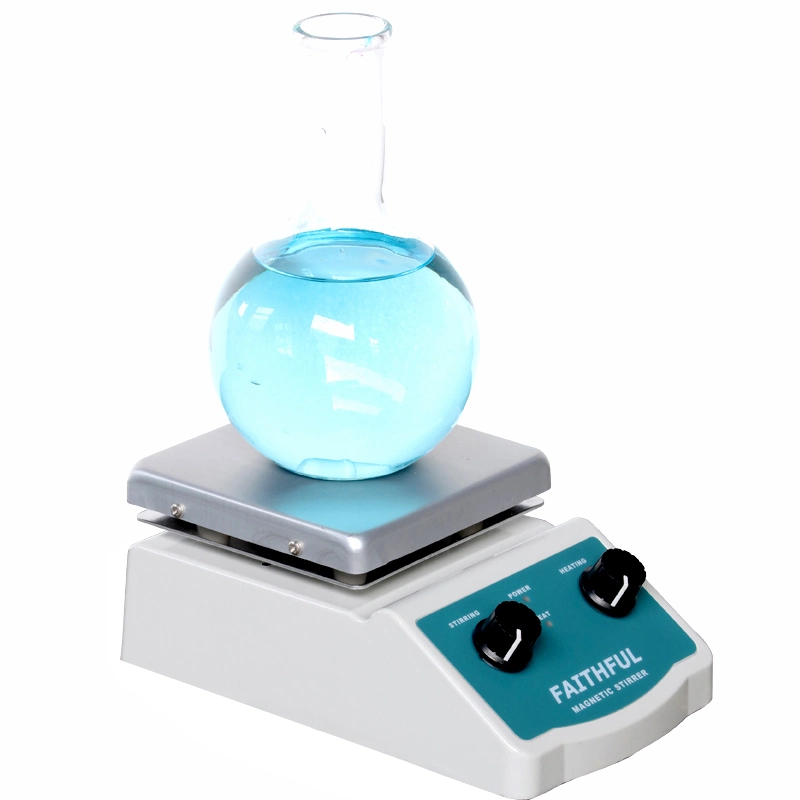

Uses:
It is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.
Characteristics:
1. Die-casting and stretching roof cover; Fabrication processed exterior to prevent leaking.
2. Heating and stirring can proceed simultaneously.
3. Enclosed heating plate with characteristics of flame protection, fast warm-up and durability.
4. Heating power and stirring speed is stepless adjusted.
EXHIBITIONS OF :
ACHEMA FAIR OF GERMANY
ACHEMA FAIR OF SHANGHAI
MUNICH FAIR
It is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.
Characteristics:
1. Die-casting and stretching roof cover; Fabrication processed exterior to prevent leaking.
2. Heating and stirring can proceed simultaneously.
3. Enclosed heating plate with characteristics of flame protection, fast warm-up and durability.
4. Heating power and stirring speed is stepless adjusted.
| Model | SH-2A | SH-2B | SH-2 | SH-3A | SH-3B | SH-3 |
| Voltage(V) | 220 / 110V | |||||
| Power(W) | 180 | without | 180 | 500 | without | 500 |
| Speed(r/min) | without | 100~2000 | without | 100~2000 | ||
| Plate size (mm) | 120 × 120 | 170 × 170 | ||||
| Max. Volume (ml) | 2000ml | 5000ml | ||||
| Plate Max. Temp. | 380 | without | 380 | 380 | without | 380 |
| Exterior Size(mm) | 200× 120× 90 | 250× 180× 120 | ||||
| Packing Size(mm) | 260× 170× 170 | 310× 220× 200 | ||||
| N. W. (Kg) | 2 | 2.1 | 2.2 | 3.1 | 3.4 | 3.5 |
| G. W. (Kg) | 2.3 | 2.4 | 2.5 | 3.6 | 3.9 | 4 |
